NC1600 Slipform Paver - A Self propelled Fully Hydraulic Slipform Paver

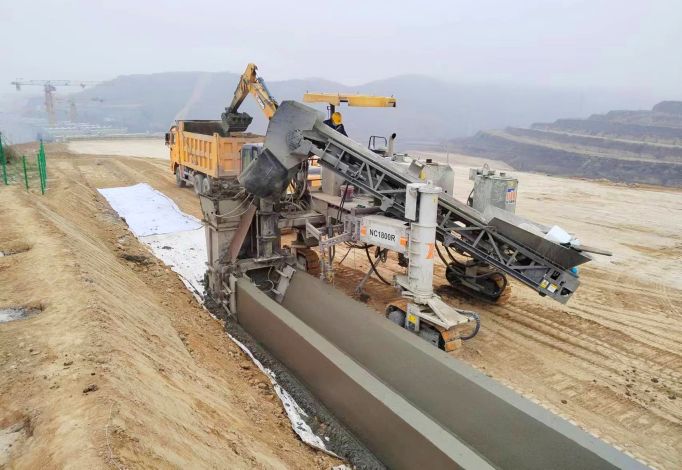

The NC1600 concrete slipform paver is a self-propelled fully hydraulic sliding mode paver with a three track design.

Mainly used for continuous concrete paving equipment such as paving curbs, water barriers, and side ditches, particularly involving a self-propelled fully hydraulic sliding mode paver. It includes a forming mold and a mold hopper, and the forming mold is arranged below the mold hopper.

The forming mold includes a front plate, a first side plate, and a second side plate. The first side plate and the second side plate are respectively connected on both sides of the front plate, and a template is arranged between the first side plate and the second side plate. The forming mold is hinged to the mold hopper through a pivot mechanism, which is connected to the front plate of the forming mold and the front side of the mold hopper; In addition, it also includes an external vibrator, which is connected to the template through a connecting frame.

The present utility model ensures stable formation, high density, good flatness, and low cost of the paved structure
